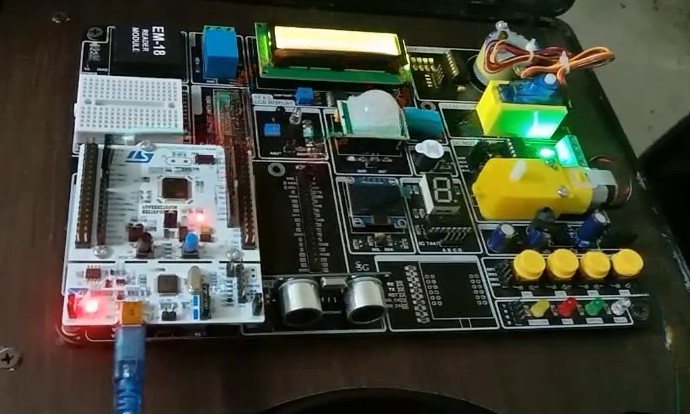

STM32 NUCLEO-F072RB Development Board
The STM32 NUCLEO-F072RB is an affordable and flexible development board from STMicroelectronics, built around the STM32F072RBT6 microcontroller, which features a 32-bit ARM Cortex-M0 core. It is designed for rapid prototyping, learning embedded systems, and developing IoT applications. The board includes an integrated ST-LINK debugger/programmer, eliminating the need for external hardware.
Key Specifications:
- Microcontroller: STM32F072RBT6 (ARM Cortex-M0)
- Digital I/O Pins: Up to 55 (5V tolerant on selected pins)
- PWM Pins: Multiple, via dedicated timers
- SRAM: 16 KB
- EEPROM: Emulated in Flash
- Flash Memory: 128 KB
Key Features of the Board:
- Integrated Debugger: Onboard ST-LINK/V2-1 for programming and debugging
- Flexible Power Supply: Can be powered via USB, external VIN, or 3.3V/5V pins
- Arduino Compatibility: Arduino Uno V3 headers allow for easy connection of a wide range of shields
- ST Morpho Headers: Provide access to all microcontroller pins for advanced custom connections
- Onboard Peripherals: User LED (LD2), User and Reset buttons
Available Interfaces (as per documentation):
- LEDs, Switches, Relay, Buzzer
- IR Sensor, PIR Sensor, Ultrasonic Sensor
- OLED Display, LCD Display, 7-Segment Display
- DC Motor, Servo Motor, Stepper Motor
- Bluetooth Module, RFID Module
Required Tools:
- STM32CubeIDE (Primary development environment)
- Micro-USB Cable (For power and programming)
